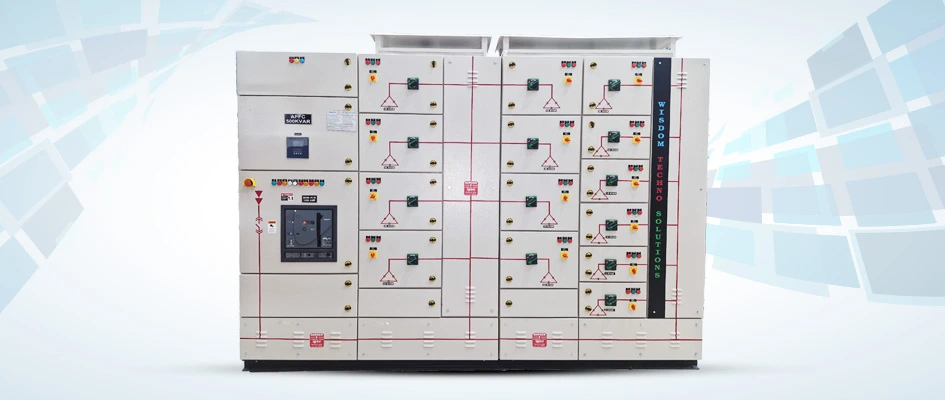

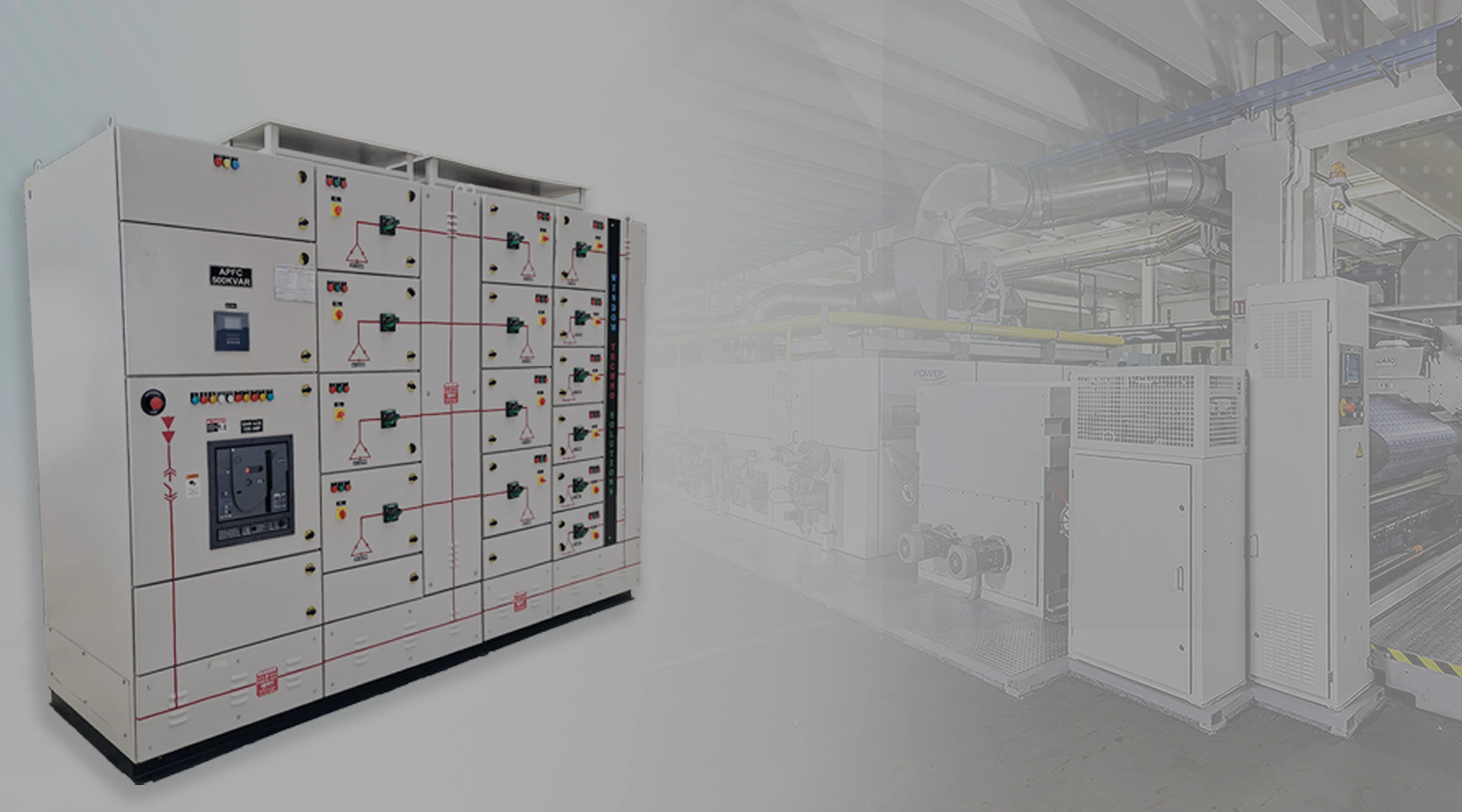

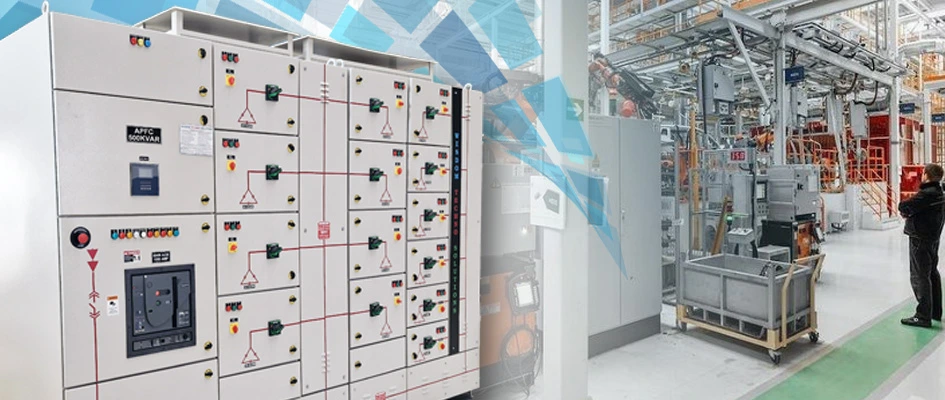

APFC Panel Manufacturer in Vadodara, India

APFC stands for Automatic Power Factor Correction. Inductive loads — motors, welding sets, transformers — draw reactive current that does no useful work but still loads the cables, the transformer and the utility's network. The APFC panel measures the plant's power factor continuously and switches capacitor steps in and out to supply that reactive current locally, holding power factor near unity as the load changes through the day.

The commercial reason is immediate: it removes the electricity board's low power factor penalty, and it releases transformer and cable capacity that the reactive current was occupying. Wisdom Techno Solutions builds APFC panels at our Vadodara works, sized from the plant's actual load pattern rather than from a rule of thumb — and with a harmonic assessment first, because on a plant full of drives an ordinary capacitor bank is the wrong answer.

• Automatic step switching by power factor controller, with configurable target PF
• Standard contactor-switched steps, or thyristor switching for rapidly varying loads
• Detuned reactors — 7% or 14% where drives and rectifiers make harmonics a factor
• Capacitor-duty contactors with damping resistors, and individual step protection
• Step sizes chosen for smooth correction across the plant's real load range
• Integrated in the PCC lineup, or as a separate floor-standing panel

From a 25 kVAr board on a small workshop supply to a detuned bank on a drive-heavy plant, the specifications below cover our standard build.

The table below is the standard build. Total kVAr, step sizes and whether reactors are needed all come out of the load and harmonic assessment, which is done before the offer is finalised.

This is the decision that determines whether an APFC panel lasts ten years or fails in its first summer. It is set by the harmonic content of the plant, not by budget.

An APFC panel pays for itself when the utility is charging a power factor penalty, or when the transformer is close to full and reactive current is part of the reason. Those are the two cases where the arithmetic is straightforward: the penalty stops, or the released capacity avoids a transformer upgrade. Both are calculable from the electricity bill and the load list before anything is ordered.

It is the wrong answer, or at least the wrong first step, on a plant with significant harmonic distortion and no assessment. Capacitors are a low-impedance path at harmonic frequencies, and an ordinary capacitor bank installed alongside a bank of drives can form a resonant circuit with the supply transformer. The result is not a poor power factor — it is capacitors running hot, fuses clearing and steps failing, sometimes within months. On any plant with VFDs, rectifiers or UPS load the harmonic content should be measured first, and the answer is then usually a detuned bank rather than a plain one.

It is also the wrong answer where the power factor problem is a single large intermittent load — a welding set or a crane. Contactor-switched steps cannot follow a load that changes in seconds; the correction lags and the contactors wear out. That case needs thyristor switching, which is faster and has no moving contacts, and costs accordingly.

Send these and every offer you receive will be comparable:

• Single line diagram
• Latest electricity bill, showing recorded power factor and any penalty
• Transformer rating and its present loading
• Load list, with the motor and drive load identified separately
• Existing power factor and the target power factor required
• Whether any VFDs, rectifiers or UPS are connected, and their approximate total rating
• A harmonic measurement if one exists, or approval to arrange one
• How fast the load varies — steady, or changing within seconds
• Standalone panel, or integrated into the PCC lineup
• Indoor or outdoor installation, and IP rating
• Available floor space and cable entry direction

The electricity bill is the single most useful document. It shows the recorded power factor, the penalty being paid and the demand pattern — which together set the kVAr, the step sizes and the payback.

• Sizing kVAr from a rule of thumb instead of the load. Over-correction pushes power factor leading, which some utilities also penalise and which raises voltage at light load.
• Installing a plain capacitor bank on a drive-heavy plant. This is the classic APFC failure: resonance with the transformer, capacitors overheating and steps failing. Measure harmonics first.
• Choosing too few steps. A four-step bank on a widely varying load spends most of its time either over- or under-corrected. Step granularity matters more than total kVAr for the result you actually see.
• Ignoring the heat. Capacitors and detuned reactors run warm continuously. An APFC panel needs forced ventilation and its temperature rise checked, especially at IP65.
• Using ordinary contactors. Capacitor switching produces a high inrush; capacitor-duty contactors with damping resistors exist for that reason and ordinary ones fail early.
• Omitting the fault level from the enquiry. Without it no vendor can size the assembly correctly, and the offers stop being comparable.
• Writing "as per IEC 61439" with no part and no year. The verification evidence a manufacturer submits has to be traceable to a specific standard and configuration.

Wisdom Techno Solutions is a licensed partner for three design-verified switchgear platforms — Rittal Ri4Power since 2021, C&S CX since 2023 and Siemens SIEPAN Elite/8PU since 2024. We build inside each system's verified configuration and routine-verify every assembly in-house at our Vadodara, Gujarat facility. Under IEC 61439 the design verification belongs to the system owner and the routine verification to the assembly manufacturer — what that division of responsibility means for a buyer is set out here.

Engineering guides from our team on the calculations and design decisions behind an APFC panel:

• APFC panel sizing — how to calculate the required kVAr
• Normal APFC vs detuned APFC — 7% vs 14% reactor and harmonics
• VFD harmonics — input choke, output choke, dV/dt filter or harmonic filter
• Electrical load list and transformer / incomer sizing
• Electrical panel heat dissipation and cooling
• Circuit breaker selectivity, discrimination and cascading
• Electrical panel FAT and routine test checklist
• How to prepare an LT panel technical specification and RFQ

If this is not the right fit for your layout, these are the alternatives we build to the same standard:

• PCC panels — power distribution from the transformer incomer to the plant's outgoing feeders
• IPCC panels — intelligent power control with metering and protection on a communication bus
• PMCC panels — PCC distribution and MCC motor control combined in one assembly
• VFD and soft starter panels — variable speed and reduced-voltage starting in a dedicated assembly
• AMF panels — automatic mains failure detection and single-generator changeover
• IEC 61439 panels — how design verification and routine verification work under the standard

Email your single line diagram, load list and system fault level and our engineers will come back with a technical offer. Not sure what to send? See what a panel manufacturer needs in order to quote accurately.
