DG Synchronization Panel Manufacturer in Vadodara, India

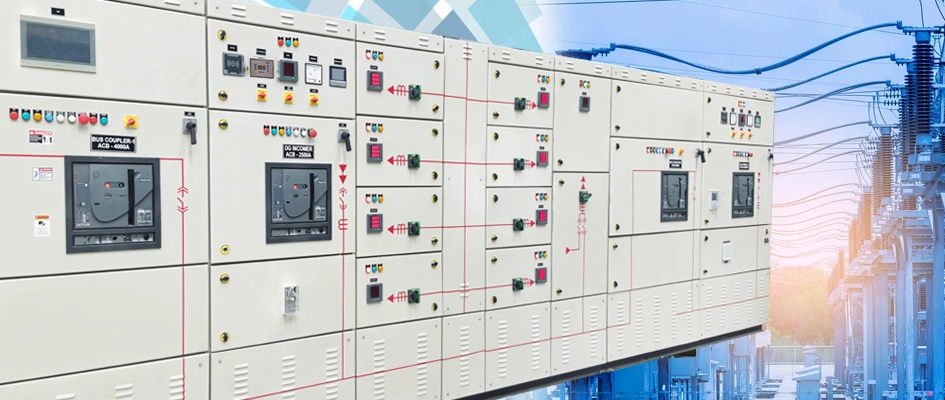

A DG synchronization panel runs two or more diesel generators in parallel on one busbar. Before a generator's breaker can close, three things must match the running bus: voltage, frequency and phase angle. The panel measures all three, adjusts the incoming set until they are inside the permitted window, closes the breaker at the right instant, and then shares the load between the sets in proportion to their ratings. Close a breaker outside that window and the mechanical shock goes straight into the crankshaft and the coupling.

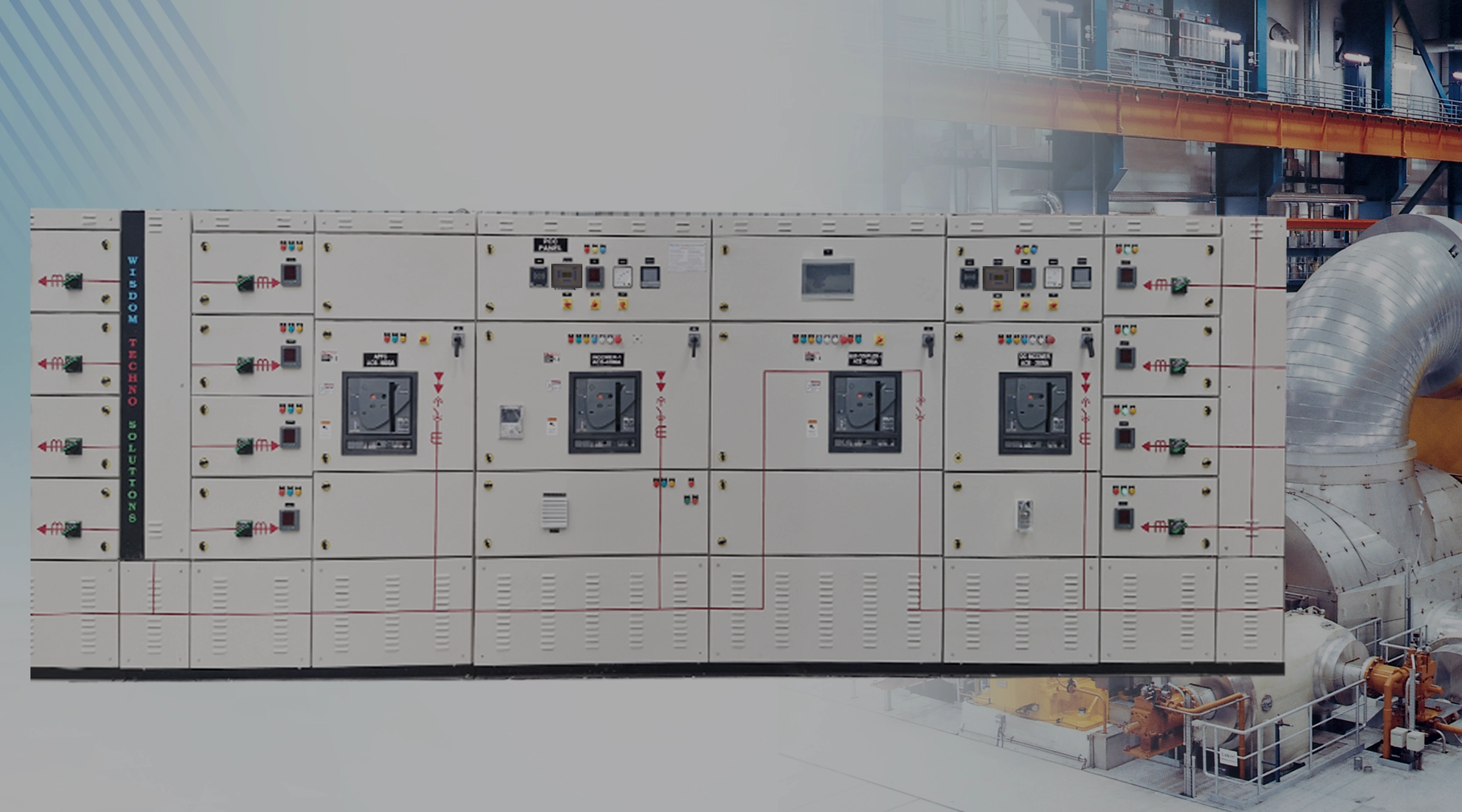

Wisdom Techno Solutions builds synchronizing panels at our Vadodara works for plants running multiple gensets, for mains-parallel operation and for load-on-demand schemes. The control philosophy is engineered against your generator schedule and your load profile, because the sequencing rules — which set is base, which follows, when a set is stopped — are what the panel actually is.

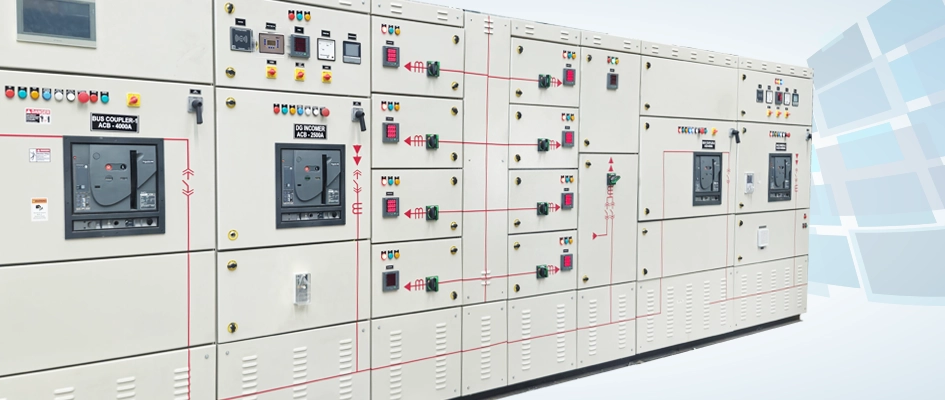

• Two or more generators in parallel, with automatic load sharing in kW and kVAr
• Auto and manual synchronizing, with a check-sync relay that blocks a wrong-instant close
• Reverse power, reverse VAr, over/under frequency and loss-of-mains protection per set
• Load-on-demand: sets started and stopped automatically to keep loading efficient
• Mains-parallel or island operation, with the changeover philosophy defined at design stage
• Genset controller integration — DeepSea, ComAp, Woodward and similar, as specified

Whether the scheme is two sets on an island bus or six sets running parallel with the mains, the specifications below cover our standard build.

The table below is the standard build. The control philosophy, the protection settings and the sequencing rules are engineered per project, from your generator schedule and load profile.

Three panels are routinely confused with each other in enquiries, and the difference is not a matter of grade — they solve different problems. This is the table to settle it with.

Synchronizing earns its place when one generator cannot or should not carry the whole load. Three reasons come up repeatedly: the total load exceeds the largest set you can buy or house; you need N+1 redundancy so a set can be serviced without a shutdown; or the load varies so widely that one large set would spend most of its life lightly loaded, which wastes fuel and wet-stacks the engine. Load-on-demand solves the third case directly.

It is the wrong answer when one set genuinely covers the load and there is no redundancy requirement. A synchronizing scheme adds breakers, controllers, protection, a load-sharing bus and a commissioning exercise that a single-set AMF panel does not need. It also adds a failure mode that does not otherwise exist — a wrong-instant close — which is why the check-sync relay is not optional.

One more honest point: synchronizing with the mains is a separate question from synchronizing generators with each other. Running in parallel with the utility needs the utility's permission and an agreed protection scheme, typically including loss-of-mains and reverse-power settings the DISCOM will want to see. Establish that before the panel is designed, not after it is delivered.

Send these and every offer you receive will be comparable:

• Generator schedule — rating, make and controller model for each set
• Single line diagram, including where the DG bus ties into the plant
• Load profile: minimum, normal and peak load, and how fast it changes
• Island operation only, or synchronizing with the mains as well
• If mains-parallel: the utility's approval and required protection settings
• Redundancy requirement — N+1, N+2, or none
• Load management wanted: base load, peak lopping, load-on-demand
• Which loads are essential and must be picked up first
• System fault level at the DG bus
• Indoor or outdoor installation, and IP rating
• SCADA or DCS interface and the point list expected

The generator schedule and the controller model matter most. Different genset controllers share load in different ways, and the panel has to be built around the ones you have or are buying.

• Leaving the check-sync relay out to save cost. It is the only thing standing between a control fault and a breaker closing out of phase. The damage lands on the alternator and the coupling, not on the panel.
• Mixing generator sizes without checking the sharing scheme. Sets of very different ratings can be paralleled, but the load-sharing settings and the smallest set's minimum loading have to be worked out first.
• Assuming mains-parallel operation is a panel decision. It needs the utility's permission and an agreed protection scheme. That approval, not the panel, is usually the long-lead item.
• Specifying load-on-demand without stating the minimum loading. Running a set below roughly 30% of rating for long periods wet-stacks it; the start and stop thresholds have to reflect the engine's limits.
• Not stating which loads are essential. After a mains failure the panel has to know what to pick up first, and that list comes from you.
• Omitting the fault level from the enquiry. Without it no vendor can size the assembly correctly, and the offers stop being comparable.
• Writing "as per IEC 61439" with no part and no year. The verification evidence a manufacturer submits has to be traceable to a specific standard and configuration.

Wisdom Techno Solutions is a licensed partner for three design-verified switchgear platforms — Rittal Ri4Power since 2021, C&S CX since 2023 and Siemens SIEPAN Elite/8PU since 2024. We build inside each system's verified configuration and routine-verify every assembly in-house at our Vadodara, Gujarat facility. Under IEC 61439 the design verification belongs to the system owner and the routine verification to the assembly manufacturer — what that division of responsibility means for a buyer is set out here.

Engineering guides from our team on the calculations and design decisions behind a DG synchronization panel:

• DG synchronization panel — working, load sharing, protection and selection
• AMF vs ATS vs DG synchronization panel — what is the difference
• 3-pole vs 4-pole ATS — neutral switching and generator earthing
• Electrical load list and transformer / incomer sizing
• Electrical panel earthing and earth busbar design
• Circuit breaker selectivity, discrimination and cascading
• Electrical panel FAT and routine test checklist
• How to prepare an LT panel technical specification and RFQ

If this is not the right fit for your layout, these are the alternatives we build to the same standard:

• AMF panels — automatic mains failure detection and single-generator changeover
• PCC panels — power distribution from the transformer incomer to the plant's outgoing feeders
• PMCC panels — PCC distribution and MCC motor control combined in one assembly
• HT / MV panels — 11 kV VCB switchgear on the incoming side of the transformer
• APFC panels — automatic power factor correction, sized to the plant's reactive load
• IEC 61439 panels — how design verification and routine verification work under the standard

Email your single line diagram, load list and system fault level and our engineers will come back with a technical offer. Not sure what to send? See what a panel manufacturer needs in order to quote accurately.
