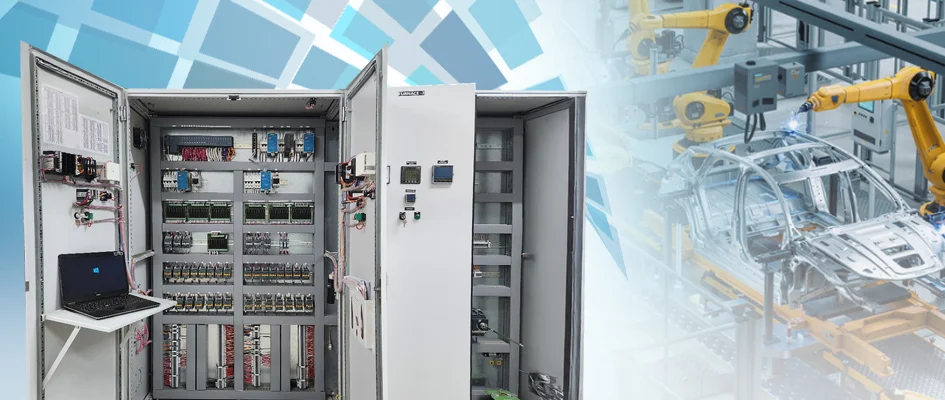

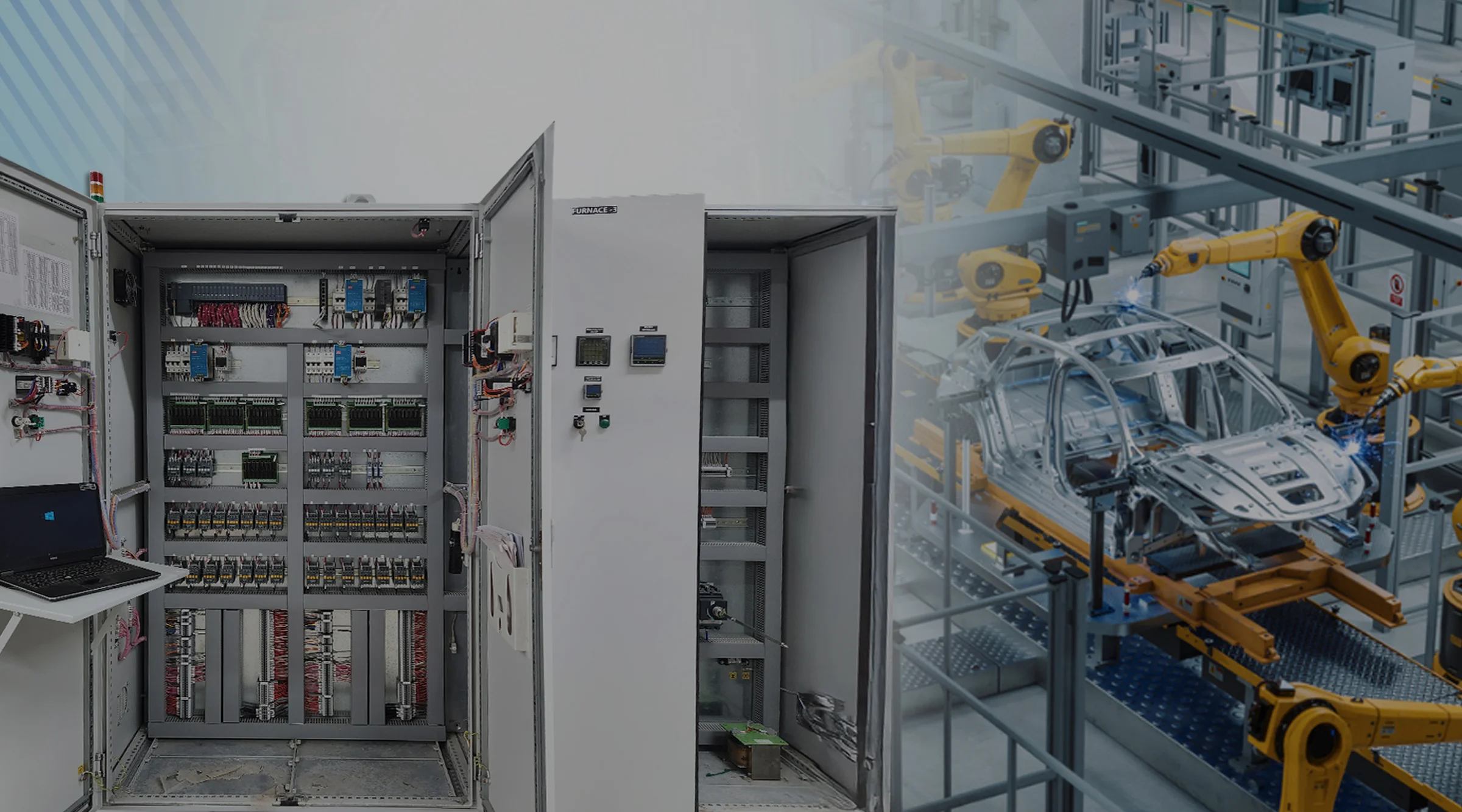

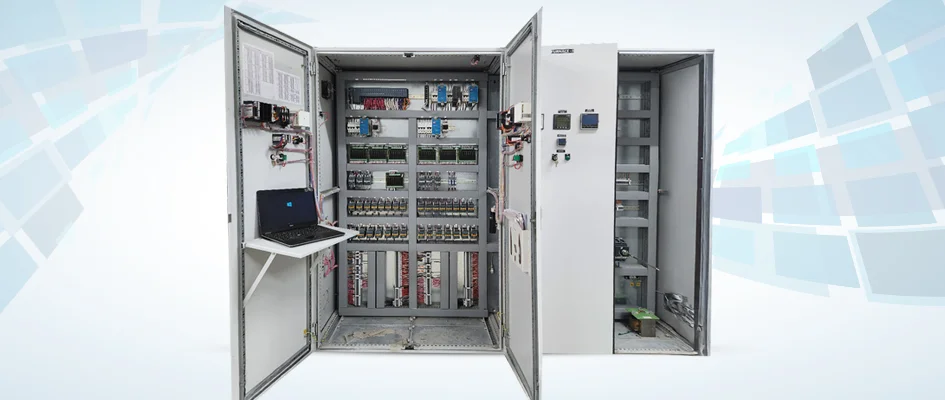

What a PLC Panel Is, and What We Build
A PLC panel is the control brain of the plant, not a power distribution board. It houses the programmable logic controller — CPU, power supply and I/O modules — together with the interposing relays, isolators, field terminations and usually an HMI through which the operator sees and drives the process. It reads the field, decides, and sends commands. The power to the motors still comes from an MCC.
That division is the single most useful thing to be clear about before you buy one. Wisdom Techno Solutions builds PLC panels to order at our works in Vadodara, Gujarat, for process plants, EPC contractors and OEMs across India — in the controller make your plant standard demands, wired and documented so that the automation contractor can commission from the drawing instead of tracing wires.
- Any major controller make — Siemens, Allen-Bradley, Schneider, Mitsubishi, Delta, Omron
- Digital and analog I/O, 4–20 mA, RTD and thermocouple, with 20% spare I/O
- HMI on the door — 7", 10" or 15" touch, or a SCADA node
- Separate clean instrument earth, isolated from protective earth
- Power, 24 V DC and analog wiring in separate trunking
- Safety circuits on a dedicated safety relay or safety PLC, never the process controller
- Hot redundancy — redundant CPU, dual power supply, ring network, redundant remote I/O
The specifications below cover our standard build.
PLC Panel Technical Specifications
The table below covers the standard build. Every panel is engineered against the project I/O list, control philosophy and the plant's automation standard, so the controller selection and module counts are confirmed against your specification before manufacturing begins.
| Parameter | Specification |
|---|---|
| Panel type | PLC control panel — a control assembly housing a programmable logic controller, its I/O and operator interface |
| Incoming control supply | 230 V AC ±10%, 50 Hz, single phase; 415 V AC 3-phase where field devices require it |
| Internal control voltage | 24 V DC from an SMPS power supply; 110 V AC control where the plant standard requires it |
| Power supply redundancy | Single SMPS as standard; dual SMPS with a diode redundancy module, so either unit can be removed with the panel live |
| Rated insulation voltage (Ui) | 1000 V |
| UPS provision | Space and wiring for an external UPS feed, or a panel-mounted DC UPS with battery backup, as specified |
| Applicable standards | IEC 61439-1 and IEC 61439-2 for the assembly and enclosure; IEC 61131 for the programmable controller |
| Segregation | Power wiring, 24 V DC control wiring and analog / communication cabling routed in separate trunking |
| Earthing | Separate protective earth and clean instrument earth bars, isolated from each other, for analog and communication screens |
| Controller makes supported | Siemens (S7-1200, S7-1500 and equivalents), Allen-Bradley, Schneider, Mitsubishi, Delta and Omron, as specified by the plant standard |
| Architecture | Compact or modular rack; remote I/O racks over a fieldbus where the field is distributed |
| CPU redundancy | Single CPU as standard; hot-standby redundant CPU pair for critical process duty, with a dedicated synchronisation link and automatic changeover |
| Communication redundancy | Ring topology with media redundancy — Profinet MRP, EtherNet/IP DLR, or a redundant Modbus TCP path — so a single cable break does not stop the network |
| Remote I/O redundancy | Dual communication paths to remote I/O racks; duplicated I/O modules on the signals identified as critical, where specified |
| Digital I/O | 24 V DC digital inputs and relay or transistor digital outputs, module counts per the I/O list |
| Analog I/O | 4–20 mA and 0–10 V inputs and outputs; RTD and thermocouple modules where field instruments require them |
| Spare I/O | 20% spare on each I/O type as standard, and spare rack slots where the enclosure allows |
| Interposing relays | Plug-in interposing relays between the PLC outputs and field devices, so a field fault does not reach the module |
| Operator interface | Door-mounted HMI touch panel, 7", 10" or 15"; hardwired pushbuttons and lamps retained for critical commands where specified |
| Communication | Modbus RTU and Modbus TCP; Profibus DP, Profinet, EtherNet/IP and CANopen as specified |
| Integration | Gateway or direct connection to DCS, SCADA, VFDs, soft starters, energy meters and motor protection relays on the plant network |
| Analog signal protection | Surge protection devices on analog and communication circuits where field runs are long or outdoors |
| Safety circuits | Emergency stop and safety interlocks on a dedicated safety relay or certified safety PLC, independent of the process controller |
| Heat management | Sized for the electronics, not just the enclosure — filtered forced ventilation or a panel cooling unit where the internal rise requires it |
| Field terminations | Ferruled and numbered terminals, segregated by signal type, with terminal numbers matching the drawing |
| Documentation issued | I/O list as built, control wiring drawings, terminal schedule, GA drawing, bill of materials with makes as supplied, and the routine test record |
| Program and logic scope | Stated explicitly in the offer — panel only, or panel with programming and HMI development |
| Degree of protection | IP42 / IP52 / IP54 / IP55 / IP65 |
| Gasketing | Rubber gasket on doors and removable covers, to suit the declared IP rating |
| Enclosure material | MS CRCA sheet steel; stainless steel on request |
| Pre-treatment | Three-tank or seven-tank process, specified per project |
| Paint finish | Epoxy-based primer with powder coating, or synthetic enamel |
| Panel layout | Single front or double front (front and rear access) |
| Heat management | Natural ventilation, filtered forced ventilation with exhaust fans, or panel cooling unit |
| Cable entry | Top or bottom, removable gland plate |
| Installation | Indoor; outdoor with weatherproof construction and canopy on request |
| Future extension | Extendable busbar chamber and spare or blank compartments, when specified at design stage |
| Testing | Routine verification in-house on every assembly; customer, consultant and third-party witnessed FAT supported |
Hot Redundancy in a PLC Panel — What Can Be Made Redundant
Hot redundancy means a second set of hardware is already running, synchronised and ready, so that a failure is absorbed without stopping the process. It is not the same as a spare on the shelf. A cold spare needs somebody to notice, fetch it, fit it and restart the plant; a hot standby takes over by itself, in the time it takes to detect the fault, and the operator finds out from an alarm rather than from a stopped line.
Wisdom Techno Solutions builds hot-redundant PLC panels at our Vadodara works. Redundancy is not one product but four separate decisions, and they are priced separately — a plant rarely needs all four, and paying for redundancy on a part that was never going to stop production is money spent for nothing. The table below sets out what each one protects against, so the choice can be made against your own downtime cost rather than against a brochure.
The single most useful question to settle first is which failure you are actually protecting against. In practice the most common answer in Indian process plants is not the CPU — modern controllers are extremely reliable — it is the power supply and the network cable. A dual SMPS and a ring network together cost a small fraction of a redundant CPU pair and remove the two failures that most often actually happen. A redundant CPU earns its place where a controller stop means a batch is lost, a furnace is damaged or a safety-critical sequence is interrupted.
| What is made redundant | What it protects against | How the changeover behaves |
|---|---|---|
| CPU — hot standby pair | Controller hardware fault, or a firmware stop on the active CPU | The standby CPU holds a synchronised copy of the process image and takes over automatically. Outputs are maintained through the transfer on a properly configured pair |
| Power supply — dual SMPS | SMPS failure, and the loss of one incoming supply where two feeds exist | No changeover event at all. A diode redundancy module shares the load, so either unit can fail or be replaced with the panel live |
| Communication — ring topology | A single cable break, a damaged connector, or one failed switch port | Media redundancy (Profinet MRP, EtherNet/IP DLR) reconfigures the ring in milliseconds. The controller sees a network alarm, not a loss of I/O |
| Remote I/O — dual path or duplicated modules | Loss of one path to a remote rack, or the failure of a single I/O card carrying a critical signal | Dual paths fail over on the network layer. Duplicated modules require the signal to be read twice in the program, which is a programming decision as much as a hardware one |
Relay Logic Panel vs PLC Panel vs PLC with SCADA
All three can run the same plant. What changes is how much the control logic can be changed later, what the plant can tell you, and how much commissioning and ownership effort comes with it.
| Consideration | Relay logic panel | PLC panel | PLC with SCADA |
|---|---|---|---|
| How the logic is held | Physically, in relay contacts and wiring | In software, in the controller program | In software, plus a supervisory layer |
| Changing the logic later | Rewiring, and a new drawing | A program change, no rewiring | A program change, plus screen changes |
| Analog control and PID | Not practical | Native | Native, with trending and tuning |
| Interlocking complexity it suits | Simple, few conditions | Complex, many conditions and timers | Complex, plus plant-wide coordination |
| What the operator sees | Lamps and meters on the door | HMI screens on the panel | Full plant graphics, trends and alarm history |
| Fault diagnosis | Trace the circuit | Read the I/O status and the program | Read the alarm log and the trend before it failed |
| Panel cost | Lowest | Higher | Highest |
| Commissioning and ownership effort | Low; any electrician can work on it | Needs a programmer and the program backup | Needs a programmer plus a SCADA engineer |
| Best fit | Small fixed-function machines | Process plants, batching, packaging, utilities | Multi-area plants needing central visibility and records |
PLC Panel, MCC or VFD Panel — and When a PLC Panel Is Not the Right Choice
These are not alternatives to each other; they are different jobs in the same system. A PLC panel decides. An MCC switches and protects the motors. A VFD panel varies the speed of a motor. In most plants a PLC panel talks to an MCC over a communication bus or hard-wired signals, and the MCC contains the starters and the drives. The enquiry that says "we need a PLC panel" but describes motor feeders is usually asking for an MCC with a PLC section, and the two need to be scoped together.
The choice that actually matters is where the intelligence sits. If the motors need coordinated sequencing, analog control, recipe handling or extensive interlocking, a PLC panel with the logic in software is the right answer, and the MCC feeders become simple starters commanded by it. If each motor is independent and locally started, the logic can live in the MCC as relay circuits and an IMCC with communication-enabled motor protection will give you the monitoring without a separate controller.
Where a PLC panel is the wrong purchase is where nobody owns the program. A PLC panel without a named programmer, without the source program handed over, and without a versioned backup is a black box that only its original integrator can maintain. That is a commercial risk, not a technical one, and it is settled in the purchase order rather than on the drawing.
What to Send for a PLC Panel Quotation
Send these and every offer you receive will be comparable:
- Single line diagram of the supply and the plant it controls
- I/O list — digital in, digital out, analog in, analog out, with signal types
- Control philosophy or logic narrative, and the interlocking requirements
- Controller make and model required by the plant standard
- HMI size required, and whether SCADA integration is in scope
- Whether programming and HMI development are in our scope or the automation contractor's
- Communication protocol, and what the panel must talk to (DCS, SCADA, VFDs, meters)
- Safety requirement — emergency stops, safety relay or safety PLC, and any SIL requirement
- Field instrument list, with signal types and cable run lengths
- Redundancy required, and on what — CPU, power supply, network, remote I/O, or a combination
- Spare I/O and future expansion provision required
- Control supply available, and whether a UPS feed is provided
- Indoor or outdoor installation, ambient temperature and IP rating
- Applicable standard, with part and year
Of all of these, the I/O list and the scope of programming are the two that decide whether the offers you receive are comparable. Without an I/O list nothing can be sized; without a clear programming scope one vendor quotes a wired box and another quotes a working control system, and the prices are not comparable at all.
Common Mistakes in PLC Panel Specifications
- Enquiring without an I/O list. The module count, the rack size, the enclosure size and the price all come from it. An enquiry that says "a PLC panel for a water treatment plant" cannot be priced, only guessed at.
- Leaving the programming scope undefined. This is the most expensive ambiguity in automation procurement. State plainly whether the panel builder programs the logic and the HMI, or supplies a wired and tested panel for someone else to program.
- Putting the emergency stop logic in the process PLC. Safety functions belong on a dedicated safety relay or a certified safety PLC with its own diagnostics. A software E-stop in the same CPU that runs the process is not a safety function.
- No spare I/O. Every plant adds an instrument. Twenty per cent spare on each I/O type and a spare rack slot costs very little at build stage and is expensive to retrofit.
- Sharing one earth bar between protective earth and instrument screens. This is the usual cause of drifting analog readings and intermittent communication faults, and it cannot be fixed by software afterwards.
- Treating the panel as sealed because it has no busbar. PLC electronics are more heat-sensitive than switchgear, not less. The internal temperature rise has to be calculated, and a fan is often not enough.
- Taking delivery without the program backup and version. Insist on the source program, the HMI project file and a written version reference as a dispatch document, alongside the drawings.
- Omitting the fault level from the enquiry. Without it no vendor can size the assembly correctly, and the offers stop being comparable.
- Writing "as per IEC 61439" with no part and no year. The verification evidence a manufacturer submits has to be traceable to a specific standard and configuration.
How Wisdom Techno Solutions Builds PLC Panels
Wisdom Techno Solutions builds and integrates this assembly at our works in Vadodara, Gujarat, for industrial, EPC and infrastructure projects across India. Every board is routine-verified in-house before dispatch, with the test records, approved drawings, bill of materials with makes as supplied and protection settings as applied issued with it. Customer, consultant and third-party witnessed testing are all supported.
Two things are worth stating plainly on a control panel. First, the licensed design-verified systems we build power assemblies inside — Rittal Ri4Power, C&S CX and Siemens SIEPAN — are verified for low-voltage power distribution and motor control assemblies, and that verification does not extend to a control panel; what we hold on a PLC panel is the routine verification of the assembly we built. Second, the programmable controller itself carries its manufacturer's own certification to IEC 61131, held by Siemens, Rockwell, Schneider or whoever supplies it — not by us. We select, mount, wire and test it.
