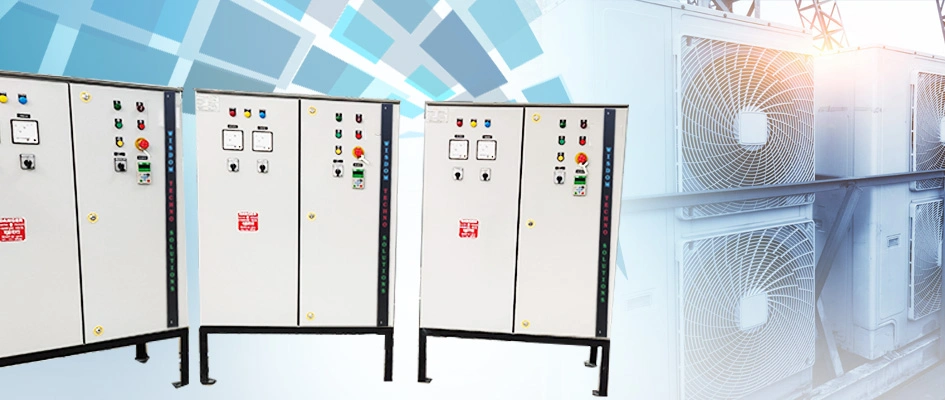

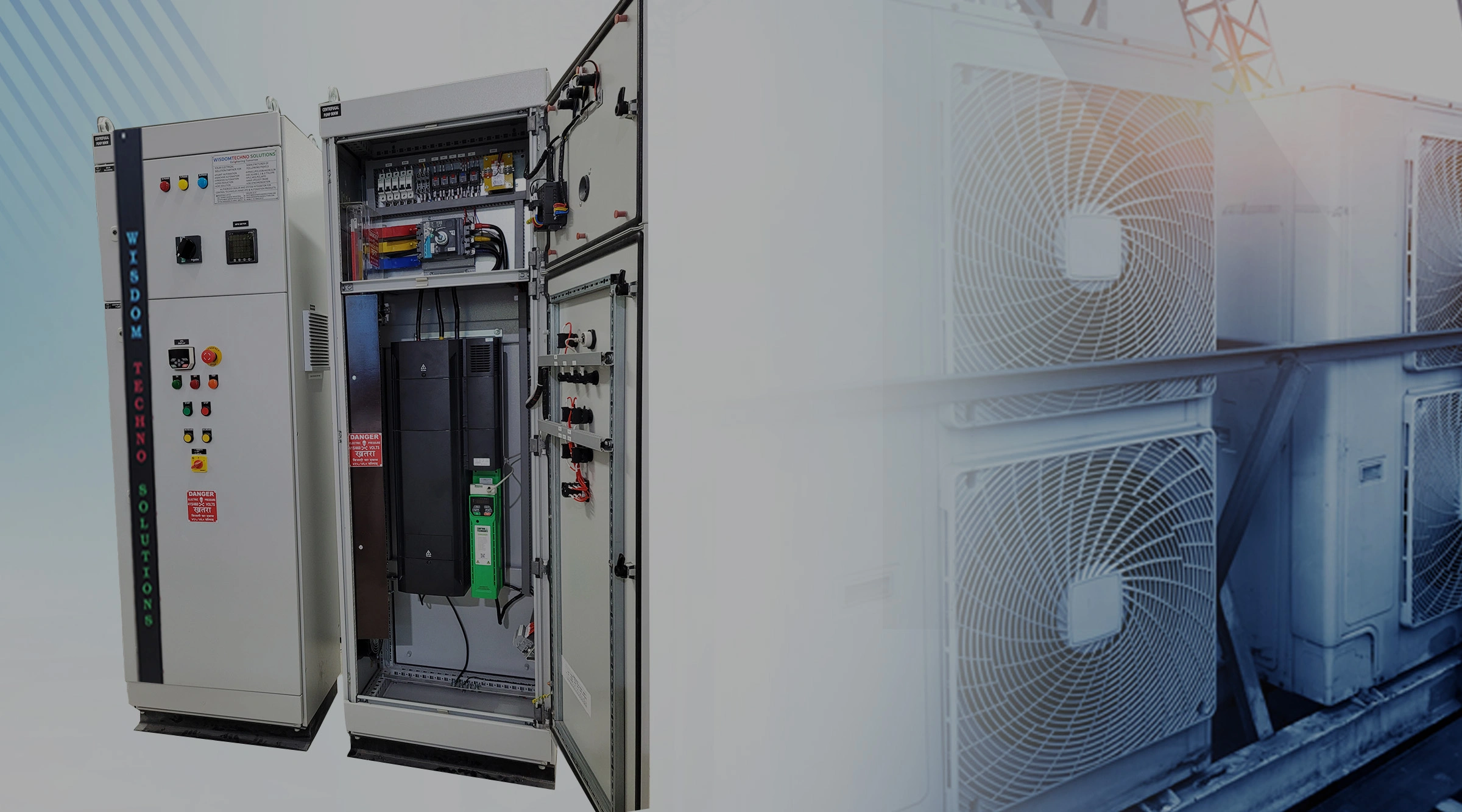

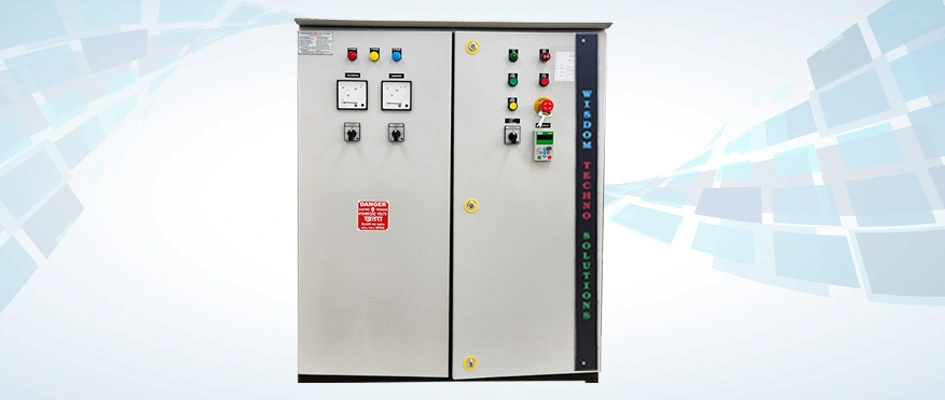

VFD and Soft Starter Panel Manufacturer in India

A VFD panel and a soft starter panel are two different answers to the same problem — starting and running a motor without damaging it. A variable frequency drive varies both the frequency and the voltage supplied to the motor, giving full speed control, smooth acceleration, reduced mechanical stress and real energy saving on variable-torque loads such as pumps and fans. A soft starter ramps the voltage up gradually, giving a controlled start and reduced electrical and mechanical stress — but no speed control once the motor is running.

Wisdom Techno Solutions builds both at our Vadodara works — as standalone panels, or as VFD and soft-starter feeders inside an MCC or PMCC lineup. Drive make follows the plant's automation standard; cooling is sized to the drive's actual heat dissipation; and where the installation needs them, line chokes, dV/dt filters and bypass arrangements are engineered in rather than bolted on later.

• VFD panels — speed control, smooth acceleration, energy saving on pumps, fans and compressors
• Soft starter panels — controlled starting where speed control is not needed
• Bypass arrangements — DOL or soft-starter bypass so the motor still runs if the drive is down
• Harmonic mitigation — line chokes and dV/dt filters where cable runs and supply demand them
• Cooling engineered to the drive's dissipation — the most common cause of drive panel failure is heat
• Standalone panels or feeders inside an MCC / PMCC, to IEC 61439-1 and -2 practice

The table below is the standard build. Drive rating, cooling, filters and bypass are set from the motor schedule, the load type and the site supply.

The practical rule: if the process needs the motor to run at different speeds — or the load is a pump or fan whose demand varies — the VFD pays for itself; if the motor only needs a gentle start and then runs flat out, the soft starter does the job at lower cost. The full decision logic, with DOL and star-delta included, is in our starter selection guide and soft starter vs VFD guide.

A single large drive — a big compressor, an ID fan — usually gets its own panel, engineered around that drive's cooling and cable requirements. Multiple motor feeders with mixed starting methods belong inside an MCC or PMCC, where DOL, star-delta, soft-starter and VFD feeders share one busbar and one incomer. Both routes are built at the same works to the same IEC 61439 discipline — the choice is layout and maintenance philosophy, and we will recommend honestly from your single line diagram.

The motor schedule (kW, voltage, full-load current, starting duty), the load type (pump, fan, compressor, conveyor…), the preferred drive make if the plant has a standard, cable distance from panel to motor (it decides the dV/dt filter), and whether a bypass is required. Send them through the Get a Quote form.

• Cooling ignored — a drive de-rates and trips in an under-ventilated panel; heat is the number-one killer of drive panels
• Long motor cables without dV/dt filters — reflected-wave voltage spikes damage motor insulation; see our harmonics and filter guide
• No bypass on critical motors — when the drive fails, the process stops with it; see the bypass interlocking guide
• Soft starter chosen for a variable load — the energy saving of a VFD is then thrown away every running hour
• Harmonics unaddressed on sites with many drives — line chokes cost little at build time

Drive panels are built at the Kotambi works to IEC 61439-1 and -2 practice: heat-dissipation calculations per our cooling guide methodology, segregated power and control wiring, GA and SLD drawings approved before manufacturing, and routine tests including functional checks of the drive, protections and interlocks before dispatch — test report shipped with the panel.

• DOL vs Star-Delta vs Soft Starter vs VFD — the complete starter selection logic
• VFD Harmonics, Line Chokes & dV/dt Filters — when each filter is needed and why
• VFD Bypass Panel & Interlocking — keeping the motor running when the drive is down
• Panel Heat Dissipation & Cooling — the calculation that keeps drive panels alive

If this is not the right fit for your layout, these are the related products we build to the same standard:

• MCC Panels — VFD and soft-starter feeders inside one motor control lineup
• PMCC Panels — power distribution and motor control combined
• IMCC Panels — drives and starters reporting to the DCS over a communication bus
• PLC Panels — the automation that commands the drives
• LT Panel Range in Vadodara — the complete LT panel family we build, on one page
• Nidec Control Techniques VFD Dealer — genuine drives by part number or guided selection, from the same works

Email your single line diagram, load list and system fault level and our engineers will come back with a technical offer. Not sure what to send? See what a panel manufacturer needs in order to quote accurately.
