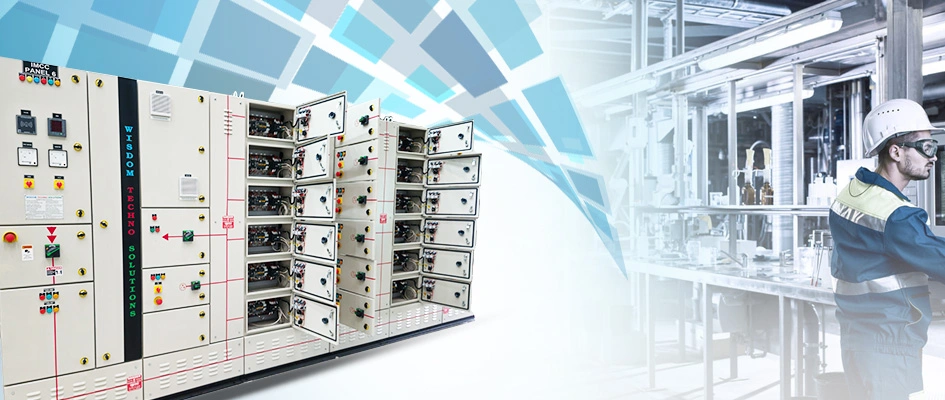

IMCC panel with a cubicle door open, showing stacked withdrawable motor starter modules, built by Wisdom Techno Solutions

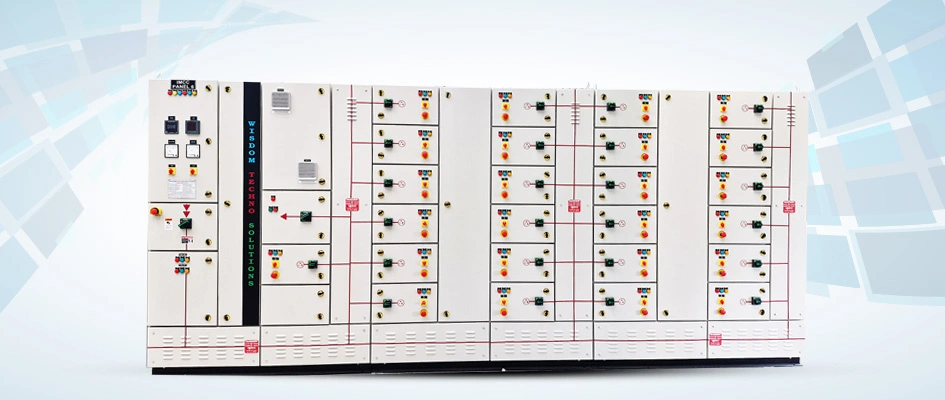

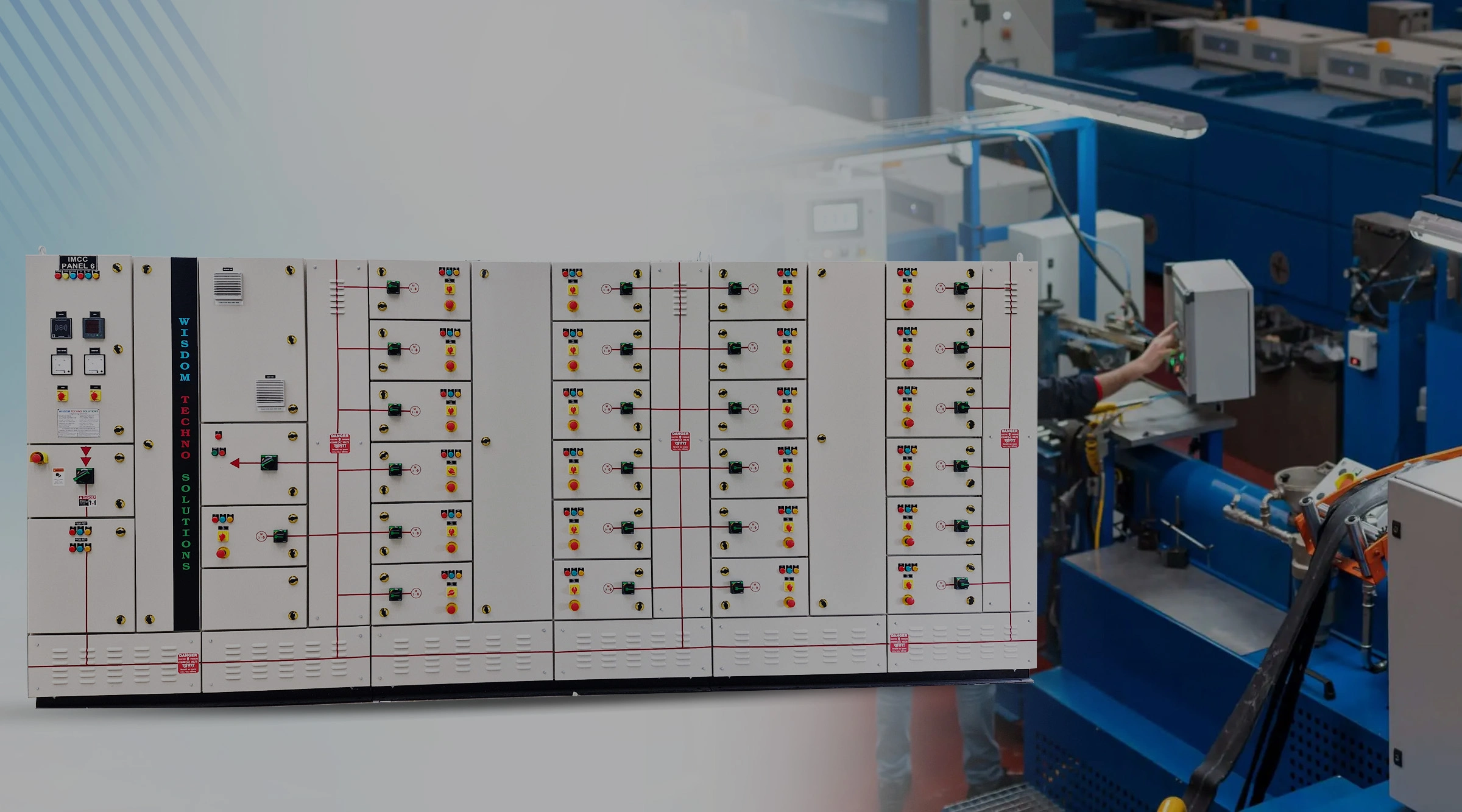

Front elevation of an intelligent motor control centre with per-feeder motor protection relays, manufactured in Vadodara

What an IMCC Panel Is, and What We Build

IMCC stands for Intelligent Motor Control Centre. Electrically it is an MCC — the same starters, the same busbar, the same protection philosophy. What makes it intelligent is that each feeder carries an electronic motor protection relay on a communication bus, so the board reports current, thermal state, trip cause and running hours to a DCS, PLC or SCADA instead of only lighting a lamp on the door.

Wisdom Techno Solutions builds IMCC panels to order at our works in Vadodara, Gujarat, for process plants, EPC contractors and infrastructure projects across India. Every board is engineered against your motor schedule, control philosophy and system fault level — not adapted from a standard catalogue design.

  • Electronic motor protection relay per feeder, on Modbus RTU, Modbus TCP, Profibus or Profinet
  • Trip cause, thermal state, running hours and load current reported to DCS, PLC or SCADA
  • DOL, star-delta, soft starter and VFD feeders in the same assembly
  • Fixed, plug-in or fully draw-out feeder modules
  • Built inside design-verified licensed systems — Rittal Ri4Power, C&S CX, Siemens SIEPAN
  • Form 1 to Form 4B separation, so one starter can be worked on while the rest stay live

The specifications below cover our standard build. Applicable ratings are confirmed against your specification before manufacturing begins.

IMCC Panel Technical Specifications

The table below covers the standard build. Every panel is engineered against the project motor schedule, control philosophy and fault level, so the applicable ratings are confirmed against your specification before manufacturing begins.

Parameter Specification
Panel type IMCC — Intelligent Motor Control Centre, an MCC with communication-enabled motor protection on every feeder
Rated operational voltage (Ue) 415 V AC, 3-phase 4-wire (up to 690 V on request)
Rated insulation voltage (Ui) 1000 V
Rated frequency 50 Hz
Busbar system rating Up to 6300 A on the Rittal Ri4Power licensed system
Short-circuit withstand (Icw) Declared per project against the system fault level and the licensed system's verified configuration
Applicable standard IEC 61439-1 and IEC 61439-2 / IS-IEC 61439 Part 1 and Part 2
Form of internal separation Form 1 to Form 4B (Form 4B Type II on the C&S CX licensed system)
Incoming devices ACB or MCCB, fixed or draw-out
Motor feeders DOL, star-delta, soft starter and VFD starters
Feeder construction Fixed, plug-in or fully draw-out modules
Motor protection Electronic motor protection relay per feeder, with communication port
Protection functions Overload with thermal model, short circuit, earth fault, single phasing, phase imbalance, phase reversal, stall, jam, under-current and under-voltage as applied
Data reported per feeder Load current, thermal capacity used, trip cause, running hours, start count, and status
Communication protocol Modbus RTU / Modbus TCP; Profibus and Profinet on request
Network topology Daisy-chained bus per section, with terminating resistors and a gateway to the plant network as specified
Hard-wired interface Potential-free contacts retained in parallel for critical trips and interlocks where specified
Local control Selector switch, start-stop pushbuttons and indication lamps retained on the door
Busbar material Electrical grade aluminium or copper
Control wiring 660 / 1100 V grade PVC-insulated stranded copper, ferruled and numbered
Degree of protection IP42 / IP52 / IP54 / IP55 / IP65
Gasketing Rubber gasket on doors and removable covers, to suit the declared IP rating
Enclosure material MS CRCA sheet steel; stainless steel on request
Pre-treatment Three-tank or seven-tank process, specified per project
Paint finish Epoxy-based primer with powder coating, or synthetic enamel
Panel layout Single front or double front (front and rear access)
Heat management Natural ventilation, filtered forced ventilation with exhaust fans, or panel cooling unit
Cable entry Top or bottom, removable gland plate
Installation Indoor; outdoor with weatherproof construction and canopy on request
Future extension Extendable busbar chamber and spare or blank compartments, when specified at design stage
Testing Routine verification in-house on every assembly; customer, consultant and third-party witnessed FAT supported

IMCC vs Conventional MCC

The switchgear is the same. What changes is what the board can tell you, what it costs, and what has to be commissioned before it can tell you anything.

Consideration Conventional MCC IMCC
Motor protection device MPCB, or MCCB with overload relay Electronic motor protection relay
What you know after a trip That the feeder tripped Why it tripped, and the current at the moment it did
Diagnostics before a failure None — the first symptom is a trip Thermal state, load trend, start count and running hours
Wiring to the control system One pair per signal, hard-wired One communication bus per section
Panel wiring effort Higher — every signal is a wire Lower for the same number of signals
Cost per feeder Lower Higher
Commissioning effort Lower Higher — addressing, mapping and integration testing
Best fit Small plants, few motors, no plant-wide control system Process plants with a DCS or SCADA and motors that cannot be allowed to fail unnoticed

When an IMCC Is the Right Choice — and When It Is Not

An IMCC earns its place where the motors matter and someone is watching. If the plant already has a DCS or SCADA, if unplanned motor failure is expensive, and if maintenance is moving from breakdown to condition-based, the extra data pays for itself — a rising thermal trend on a feeder is a maintenance job scheduled rather than a production stop.

It is the wrong choice where nobody will read the data. An IMCC costs more per feeder, takes longer to commission, and needs somebody to own the addressing, the register map and the integration testing. A plant with no control system to receive the data, or no one to act on it, is buying capability it will not use — a conventional MCC is the better answer and the money is better spent on separation or draw-out construction.

What to Send for a IMCC Panel Quotation

Send these and every offer you receive will be comparable:

  • Single line diagram
  • Motor schedule — rating, starting method and duty for each motor
  • Communication protocol required — Modbus RTU, Modbus TCP, Profibus or Profinet
  • DCS, PLC or SCADA make and the register map or point list expected
  • Which trips must also remain hard-wired
  • System fault level, transformer rating and impedance
  • Required form of separation and IP rating
  • Fixed, plug-in or draw-out construction
  • Indoor or outdoor installation, single front or double front
  • Spare feeder and future expansion provision
  • Applicable standard, with part and year

The protocol and the point list matter as much as the motor schedule on an IMCC. Send them at enquiry stage and the integration work can be priced properly instead of discovered during commissioning.

Common Mistakes in IMCC Panel Specifications

  • Buying the intelligence without buying the integration. Relays that report to nothing are expensive relays. The DCS or SCADA side, the register map and the point list belong in the same scope.
  • Removing every hard-wired trip. Critical interlocks are usually kept hard-wired in parallel with the bus, so that a network failure cannot leave a motor unprotected. Decide which ones at design stage.
  • Mixing relay makes across one bus without checking the register maps. Two makes on one network means two mappings and two sets of firmware behaviour to commission.
  • Adding VFD feeders after the design is fixed. Drives change the harmonic and thermal picture of the whole board, and they also add their own communication nodes.
  • Omitting the fault level from the enquiry. Without it no vendor can size the assembly correctly, and the offers stop being comparable.
  • Writing "as per IEC 61439" with no part and no year. The verification evidence a manufacturer submits has to be traceable to a specific standard and configuration.

How Wisdom Techno Solutions Builds IMCC Panels

Wisdom Techno Solutions is a licensed partner for three design-verified switchgear platforms — Rittal Ri4Power since 2021, C&S CX since 2023 and Siemens SIEPAN Elite/8PU since 2024. We build inside each system's verified configuration and routine-verify every assembly in-house at our Vadodara, Gujarat facility. Under IEC 61439 the design verification belongs to the system owner and the routine verification to the assembly manufacturer — what that division of responsibility means for a buyer is set out here.

Related Technical Guides

Engineering guides from our team on the calculations and design decisions behind an IMCC panel:

Related Panel Types

If this is not the right fit for your layout, these are the alternatives we build to the same standard:

  • MCC panels — centralised motor control and protection, sized to the motor schedule
  • Draw-out MCC panels — where feeder modules must be withdrawable for maintenance without a shutdown
  • IPCC panels — intelligent power control with metering and protection on a communication bus
  • PMCC panels — PCC distribution and MCC motor control combined in one assembly
  • VFD and soft starter panels — variable speed and reduced-voltage starting in a dedicated assembly
  • IEC 61439 panels — how design verification and routine verification work under the standard

Send Your Single Line Diagram

Email your single line diagram, load list and system fault level and our engineers will come back with a technical offer. Not sure what to send? See what a panel manufacturer needs in order to quote accurately.

Manufacturer Wisdom Techno Solutions
Works Plot 9, Nilkanth Industrial Park 1, near Kotambi Stadium, Kamrol, Kotambi, Vadodara, Gujarat 391510, India
Email connect@wisdomtechnosolutions.com
Phone +91 80002 29727
Working hours Monday to Saturday, 8:00 am to 5:00 pm IST
Delivery lead time 6 to 7 weeks from drawing approval, subject to switchgear availability

Frequently Asked Questions About IMCC Panels

What is the full form of an IMCC panel?
IMCC stands for Intelligent Motor Control Centre. Electrically it is an MCC — the same busbar, the same starters, the same protection philosophy. What makes it intelligent is that every feeder carries an electronic motor protection relay connected to a communication bus, so the board reports load current, thermal state, trip cause and running hours to a DCS, PLC or SCADA rather than only indicating on the door.
What is the difference between an MCC and an IMCC?
The difference is information, not switchgear. A conventional MCC tells you that a feeder tripped. An IMCC tells you why it tripped, what the current was at that moment, how much thermal capacity the motor had used, how many times it has started and how long it has run. That costs more per feeder and takes longer to commission, and it is worth it only where a control system and a maintenance team will actually use the data.
Which communication protocols do you support?
Modbus RTU and Modbus TCP are the usual choices, and Profibus and Profinet are supported on request. The protocol should be fixed at enquiry stage, because it determines the relay selection, the network topology, the gateway and the amount of integration work. Changing it after the design is approved usually means changing the relays.
Should critical trips still be hard-wired?
Usually yes, and this should be decided at design stage rather than left to the commissioning engineer. Emergency stops, safety interlocks and any trip whose failure would be dangerous are normally kept hard-wired in parallel with the communication bus, so that a network or gateway failure cannot leave a motor unprotected. The bus then carries monitoring and non-critical control.
What data does an IMCC give me per motor?
Typically load current, thermal capacity used, trip cause, running hours, start count and feeder status, with the exact list depending on the relay selected. The value is in the trend rather than the snapshot: a feeder whose thermal capacity used is climbing month by month is telling you about a bearing, a coupling or a process change well before it trips.
Does an IMCC replace a PLC or DCS?
No. An IMCC is a source of data and a means of control at the feeder level; the DCS or PLC is what decides, sequences and displays. The two have to be specified together — the register map, the point list and who owns the integration are as much part of the scope as the panel itself, and leaving them out is the most common reason an IMCC underdelivers.
Which form of separation should an IMCC panel have?
Form 3b and Form 4B are the usual choices, as with any MCC, because starter feeders are worked on while the rest of the board stays live. Form 3b separates the functional units from each other; Form 4a and 4b additionally separate each unit's terminals. Where feeders must be changed without a shutdown, Form 4B with draw-out modules is the combination that delivers it.
Can an IMCC be extended later?
Only if it was designed for extension at the outset — the busbar chamber left extendable at one end, physical space reserved in the electrical room layout, spare or blank compartments provided, and the main busbar sized for the future motor load. On an IMCC there is a second consideration: the communication network needs spare addresses and physical capacity, and the register map has to have room in it.
Do you support IMCC commissioning at sites outside Gujarat?
Yes. The panel is built and tested at our Vadodara works and our own engineers handle drawing meetings, witnessed FAT and after-sales support. On an IMCC the commissioning question is usually not the panel but the integration — addressing, register mapping and testing against the DCS or SCADA. Agree at order stage who owns that work, ours or the automation contractor's, and site attendance can be scheduled around it.
What information do you need to quote an IMCC panel?
The motor schedule and the communication requirement, together. That means: rating, starting method and duty for every motor; the protocol required; the DCS, PLC or SCADA make and the point list expected; which trips must stay hard-wired; the single line diagram; the transformer rating and system fault level; the form of separation and IP rating; fixed, plug-in or draw-out construction; and the applicable standard with its part and year.
